Amyloidosis in Cardiology Practice: A Race Against Time

  • Authors: Mathew Maurer, MD; Jose Nativi-Nicolau, MD; Ronald M. Witteles, MD
  • CME / ABIM MOC / CE Released: 3/28/2019
  • Valid for credit through: 3/28/2020, 11:59 PM EST
Start Activity

Target Audience and Goal Statement

This activity is intended for cardiologists, neurologists, hematology and oncology specialists, and nurses.

The goal of this activity is to improve the recognition, diagnosis, and management of cardiac amyloidosis.

Upon completion of this activity, participants will:

  • Have increased knowledge regarding the
    • Clinical signs and symptoms of amyloidosis
    • Latest clinical data on treatment of hereditary transthyretin-related amyloidosis
  • Have greater competence related to
    • Patient assessment to improve early diagnosis of amyloidosis


As an organization accredited by the ACCME, Medscape, LLC, requires everyone who is in a position to control the content of an education activity to disclose all relevant financial relationships with any commercial interest. The ACCME defines "relevant financial relationships" as financial relationships in any amount, occurring within the past 12 months, including financial relationships of a spouse or life partner, that could create a conflict of interest.

Medscape, LLC, encourages Authors to identify investigational products or off-label uses of products regulated by the US Food and Drug Administration, at first mention and where appropriate in the content.


  • Mathew Maurer, MD

    Arnold and Arlene Goldstein Professor of Cardiology
    Department of Medicine Cardiology
    Columbia University Medical Center
    New York, New York


    Disclosure: Mathew Maurer, MD, has disclosed the following relevant financial relationships:
    Served as an advisor or consultant for: Akcea Therapeutics; Amylon Therapeutics; Ionis Pharmaceutcials; Pfizer Inc.


  • Jose Nativi-Nicolau, MD

    Assistant Professor
    University of Utah
    Salt Lake City, Utah


    Disclosure: Jose Nativi-Nicolau, MD, has disclosed the following relevant financial relationships:
    Served as an advisor or consultant for: Akcea Therapeutics; Alnylam Pharmaceuticals, Inc.; Pfizer Inc.
    Received grants for clinical research from: Akcea Therapeutics; Eidos Therapeutics; Pfizer Inc.

  • Ronald M. Witteles, MD

    Associate Professor of Cardiovascular Medicine
    Stanford Amyloid Center
    Stanford University School of Medicine
    Stanford, California


    Disclosure: Ronald M. Witteles, MD, has disclosed the following relevant financial relationships:
    Served as an advisor or consultant for: Alnylam Pharmaceuticals, Inc.; Pfizer Inc.
    Received grants for clinical research from: Eidos Therapeutics; Pfizer Inc.


  • Joy P. Marko, MS, APN-C, CCMEP

    Scientific Director, Medscape, LLC


    Disclosure: Joy P. Marko, MS, APN-C, CCMEP, has disclosed no relevant financial relationships.

  • Kalanethee Paul-Pletzer, PhD

    Scientific Director, Medscape, LLC


    Disclosure: Kalanethee Paul-Pletzer, PhD, has disclosed no relevant financial relationships.

Nurse Planner

  • Amy Bernard, MS, BSN, RN-BC, CHCP

    Lead Nurse Planner, Medscape, LLC


    Disclosure: Amy Bernard, MS, BSN, RN-BC, CHCP, has disclosed no relevant financial relationships.

Peer Reviewer

This activity has been peer reviewed and the reviewer has disclosed the following relevant financial relationships:
Served as an advisor or consultant for: Abbott Laboratories; Medtronic, Inc.

Accreditation Statements


Interprofessional Continuing Education

In support of improving patient care, Medscape, LLC is jointly accredited by the Accreditation Council for Continuing Medical Education (ACCME), the Accreditation Council for Pharmacy Education (ACPE), and the American Nurses Credentialing Center (ANCC), to provide continuing education for the healthcare team.

    For Physicians

  • Medscape, LLC designates this enduring material for a maximum of 0.50 AMA PRA Category 1 Credit(s)™ . Physicians should claim only the credit commensurate with the extent of their participation in the activity.

    Medscape, LLC staff have disclosed that they have no relevant financial relationships.

    Successful completion of this CME activity, which includes participation in the evaluation component, enables the participant to earn up to 0.50 MOC points in the American Board of Internal Medicine's (ABIM) Maintenance of Certification (MOC) program. Participants will earn MOC points equivalent to the amount of CME credits claimed for the activity. It is the CME activity provider's responsibility to submit participant completion information to ACCME for the purpose of granting ABIM MOC credit. Aggregate participant data will be shared with commercial supporters of this activity.

    Contact This Provider

    For Nurses

  • Awarded 0.50 contact hour(s) of continuing nursing education for RNs and APNs; 0.25 contact hours are in the area of pharmacology.

    Contact This Provider

For questions regarding the content of this activity, contact the accredited provider for this CME/CE activity noted above. For technical assistance, contact [email protected]

Instructions for Participation and Credit

There are no fees for participating in or receiving credit for this online educational activity. For information on applicability and acceptance of continuing education credit for this activity, please consult your professional licensing board.

This activity is designed to be completed within the time designated on the title page; physicians should claim only those credits that reflect the time actually spent in the activity. To successfully earn credit, participants must complete the activity online during the valid credit period that is noted on the title page. To receive AMA PRA Category 1 Credit™, you must receive a minimum score of 75% on the post-test.

Follow these steps to earn CME/CE credit*:

  1. Read the target audience, learning objectives, and author disclosures.
  2. Study the educational content online or printed out.
  3. Online, choose the best answer to each test question. To receive a certificate, you must receive a passing score as designated at the top of the test. We encourage you to complete the Activity Evaluation to provide feedback for future programming.

You may now view or print the certificate from your CME/CE Tracker. You may print the certificate but you cannot alter it. Credits will be tallied in your CME/CE Tracker and archived for 6 years; at any point within this time period you can print out the tally as well as the certificates from the CME/CE Tracker.

*The credit that you receive is based on your user profile.


Amyloidosis in Cardiology Practice: A Race Against Time


Patient Assessment and Diagnosis of Amyloidosis


  • Patient Assessment and Diagnosis of Amyloidosis

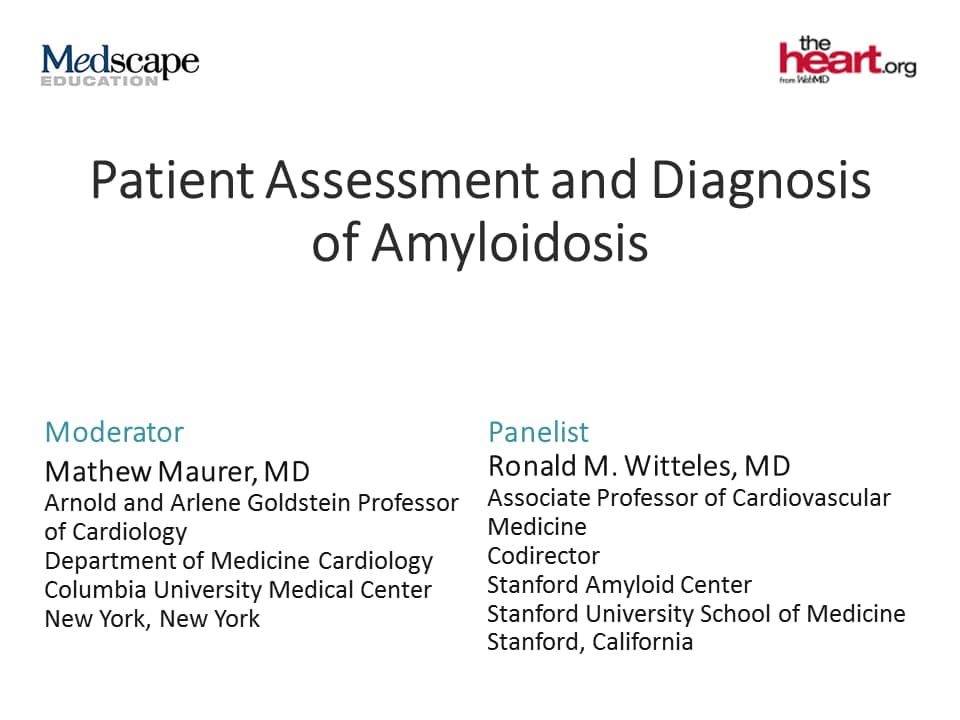

  • Slide 1.

    Slide 1.

    (Enlarge Slide)
  • Cardiac Manifestations [1]

    • Systolic dysfunction manifests later in the disease course
    • Heart block is extremely common, particularly in ATTR
    • Many patients, particularly with ATTR, do not have low voltages on ECG
    • Rather than low QRS voltages alone, the abnormal ratio between LV thickness and QRS voltages is characteristic of CA
    • An LVH pattern seen on echocardiography that is not hypertrophy of the muscle but rather amyloid deposition
    • An elevated troponin level is a common finding due to chronic gradual destruction of cardiomyocytes
    • New-onset atrial fibrillation with no AV nodal blocking agents and antiarrhythmic agents and with a heart rate of 60 to 70 beats/min is another characteristic feature of CA

  • Slide 2.

    Slide 2.

    (Enlarge Slide)
  • Biopsy: Gold Standard and Only Way to Diagnose AL Amyloidosis [1,16]

    • Abnormal light chains or an abnormal serum protein immunoelectrophoresis (SPIE) is not sufficient to make the diagnosis of AL amyloidosis
    • Abdominal fat pad biopsy is most frequently performed but has mediocre sensitivity
    • A negative fat pad biopsy result does not rule out AL amyloidosis

  • Slide 3.

    Slide 3.

    (Enlarge Slide)
  • Adjunctive Laboratory Tests [1]

    • Free light-chain assay and SPIE are the most important tests
    • Free light-chain assay
      • A κ:λ ratio of greater than 2:1 (in either direction) strongly implies clonal production of κ or λ light chains
    • SPIE
      • Directly tests for clonality
      • Most patients with plasma cell dyscrasias secrete a whole immunoglobulin and a light chain

  • Slide 4.

    Slide 4.

    (Enlarge Slide)
  • 99mTechnetium-PYP Imaging [2]

    • 99mTc-pyrophosphate (PYP) cardiac imaging distinguishes AL amyloidosis from cardiac ATTR
    • May be a simple, widely available method for identifying subjects with cardiac ATTR

  • Slide 5.

    Slide 5.

    (Enlarge Slide)
  • 99mTc-PYP Imaging: Assessments [17]

    • Cardiac retention is assessed with a
      • Semiquantitative visual score and
      • Quantitative heart:contralateral (H:CL) ratio
    • Timing of imaging is important
      • H:CL ratio is higher with 1-hour vs 3-hour incubation

  • Slide 6.

    Slide 6.

    (Enlarge Slide)

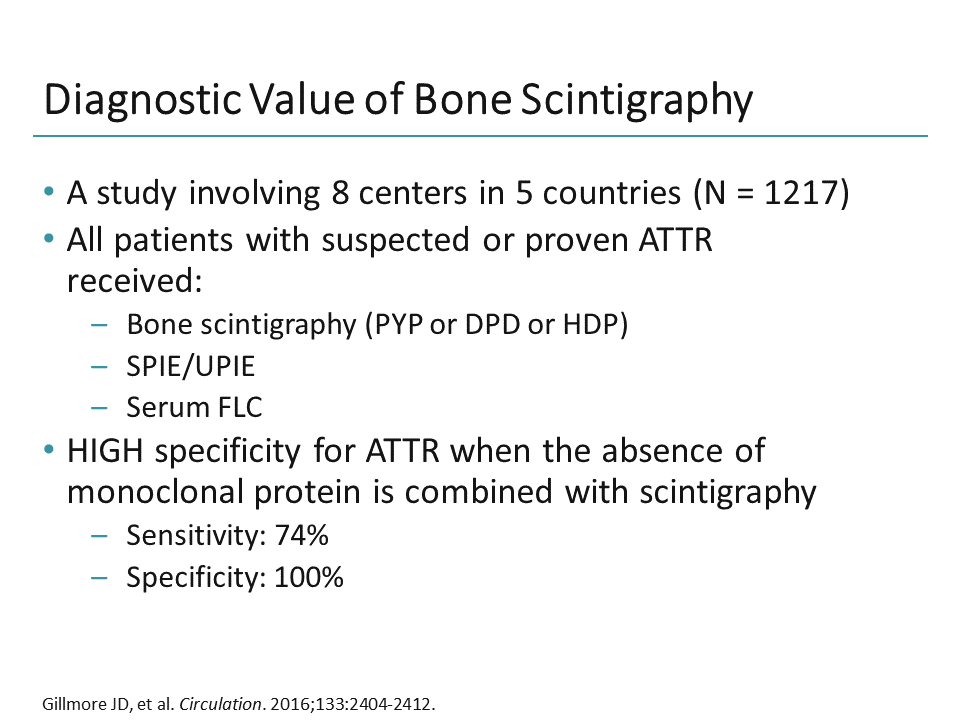

  • Diagnostic Value of Bone Scintigraphy [18]

    • Bone scintigraphy enables the diagnosis of cardiac ATTR to be made reliably without the need for histology in patients who do not have a monoclonal gammopathy
    • Bone scintigraphy should not be used before ruling out monoclonal protein

  • Slide 7.

    Slide 7.

    (Enlarge Slide)
  • Diagnostic Algorithm

    • In patients with clinical suspicion of amyloidosis, the first step is to rule out/rule in monoclonal gammopathy
    • If the monoclonal protein test is positive, the next step is biopsy
    • If the monoclonal protein test is negative, the next step is bone scintigraphy
    • If bone scintigraphy is positive, the next step is genetic testing to identity the type of ATTR

  • Slide 8.

    Slide 8.

    (Enlarge Slide)
